Gibbs development marks next step in product model data evolution

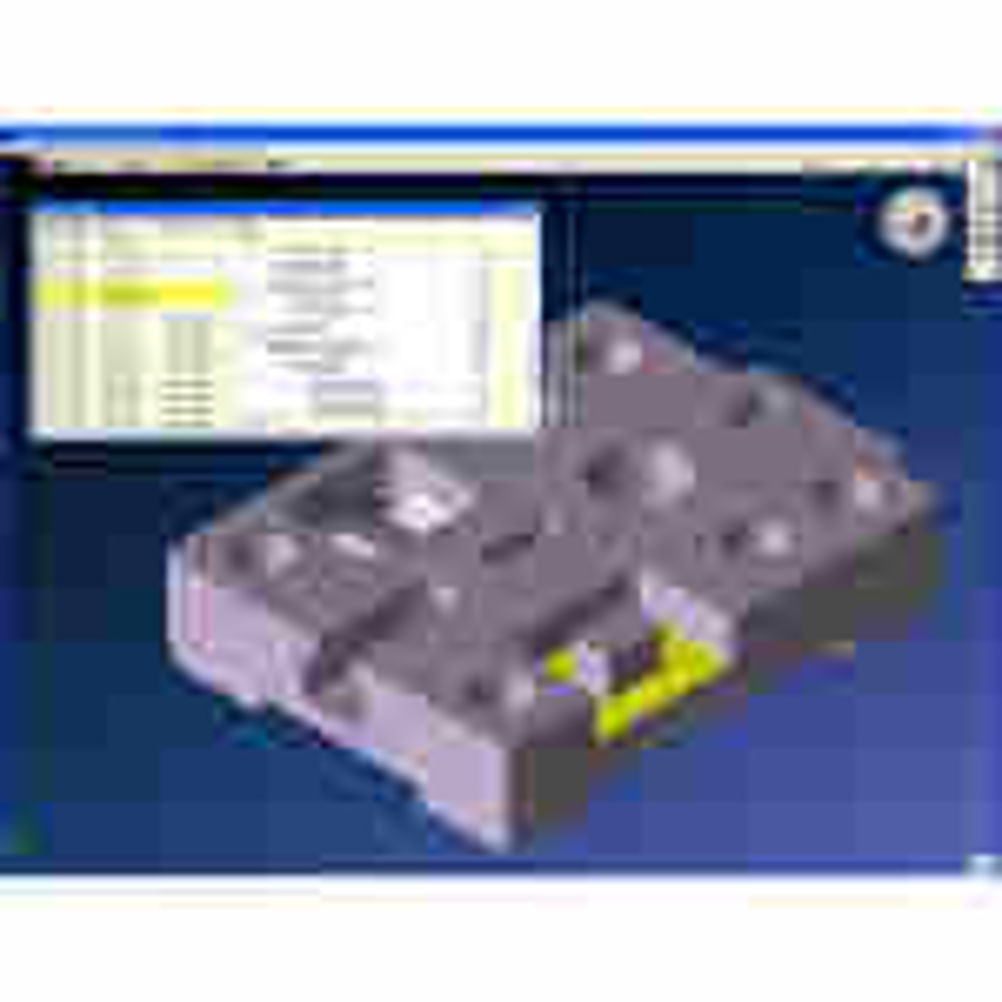

STEP AP224 supports the transfer of manufacturable product information between design engineering and manufacturing engineering groups and includes both geometric and product manufacturing information, such as features with dimensions and tolerances. “STEP AP224 represents the next generation of product model data," said John Callen, Gibbs’ vice president of marketing. "Not only does AP224 contain the geometry of the product, but it also includes the other information which is required to have a complete product specification necessary for machining. "Traditionally, this product information has only been available to the manufacturing group through a set of separate engineering drawings. This initial step allows us to gauge the market’s reception of AP224 while establishing a technical foundation upon which further enhancements can be developed.” GibbsCAM’s STEP AP224 interface reads the solid model contained in the AP224 file and then creates features which correspond to the features in the AP224 file. The Feature Manager can then be used to organise and manipulate the features within GibbsCAM. A feature selected in the Feature Manager listing is highlighted and the geometric faces within that feature can be passed as a group to various operations which are used for machining within GibbsCAM. For example, hole features can be selected as a group and then passed to GibbsCAM’s Hole Manager for processing. The features’ product manufacturing information contained in the AP224 file is also read into GibbsCAM and can be referenced by the user while creating a CNC program. The development comes on completion of a collaborative effort with the USA's South Carolina Research Authority (SCRA). The STEP AP224 interface was implemented under funding from the US Army’s Tank Automotive Research, Development, and Engineering Center (TARDEC), a key client of SCRA. In the interest of improving overall operational efficiency and reducing deployment and maintenance expenses, various branches of the Department of Defense have been investing in STEP-based technologies. Today, a number of STEP formats are in use in various military maintenance depots throughout the United States. “We see GibbsCAM’s support of AP224 as an important step in its commercial deployment and adoption,” said Dr William Freeman, SCRA’s director of research and development, Institute for Solutions Generation, which specialises in working with various organisations within the Department of Defense. “We believe that AP224 has considerable applicability outside the military supply chain and this is an excellent way to demonstrate that value to manufacturers of commercial goods. This also provides our military clients with a commercially available CADCAM system which is capable of meeting their mission requirements.” * See linked feature for more information on STEP and automated programming.
