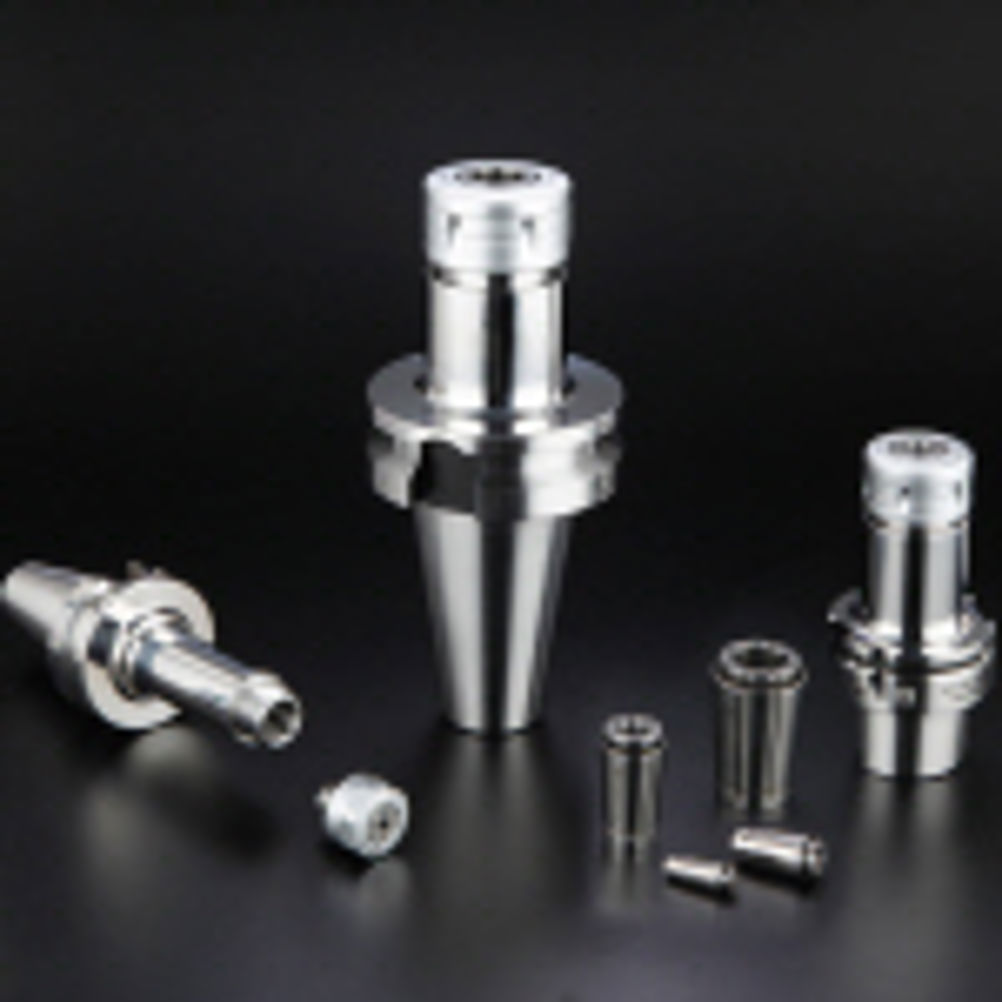

TaeguTec improves accuracy with TSK Collet Chuck
TaeguTec has added to its range with the TSK Collet Chuck specifically designed for precision machining and considerably more accurate than existing ER collet chuck systems.
The TSK Collet Chuck has been designed with a 4° collet taper, compared to the existing 8° tapers in ER collets. This offers a wider clamping area than current ER collet chucks and therefore improves accuracy, making them ideal for applications such as reaming.
The TSK series can accommodate shanks from 1 to 25 mm diameter. The collets have been developed for BT, HSK and DIN shank types.
A slim design minimises interruption and possible interference between the cutting tool and the workpiece making it particularly suited for high speed and deep pocket machining.
The TSK Collet Chucks works in conjunction with a specialist implement that enables end users to easily remove the collet from the machine tool.
