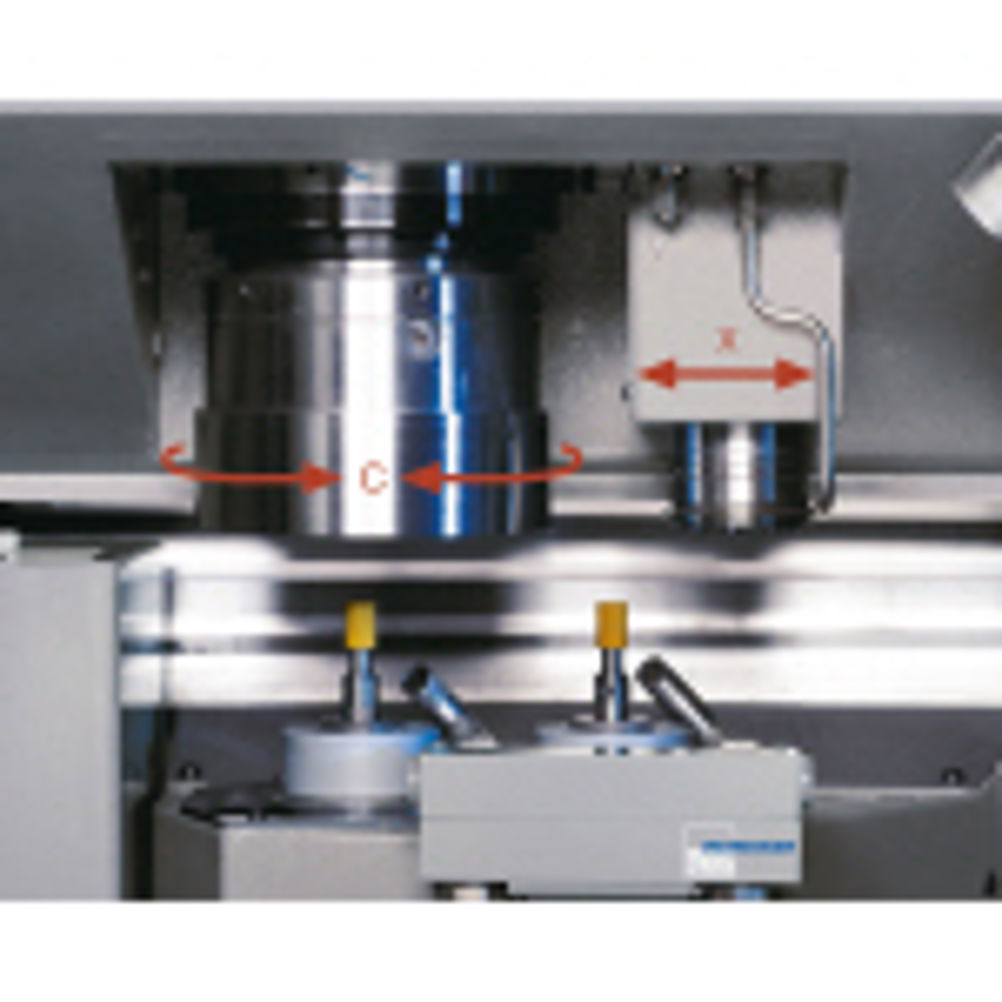

The VG 110 is a production grinder for the machining of large batches of small and very small high-precision workpieces using the following technologies:
* internal cylindrical grinding
* external cylindrical grinding
* out-of-round grinding
* the combination process of hard turning + grinding
The VG 110 provides the user with a choice to either grind the “traditional” way or profit from the advantages offered by the combination of turning + grinding on one machine: where the process specification permits, sections of the workpiece are soft or hard finish-turned and only finish-ground – in the same setup (and most frequently after having first been pre-turned) – as tolerances demand. This not only improves component quality but also reduces cycle times. It also limits the wear and tear of grinding wheels and, consequently, the number of dressing cycles required. This makes the VG series an attractive proposition for the manufacture of many small, very precise components:
* cup valve pistons and valve bodies for modern fuel injection systems
* rollers and sleeves for monobloc injection pumps and nozzles
* cam rings for fuel injection and power steering pumps, parts for air conditioners in passenger cars, for radial piston pumps and motors
* internal and external polygons on tool shanks or drive shafts
* cylinder liners
* pinions
