A Step Ahead with MarSurf One
Mobile. Connected. For use anywhere. Cost-efficient.
Smartphone

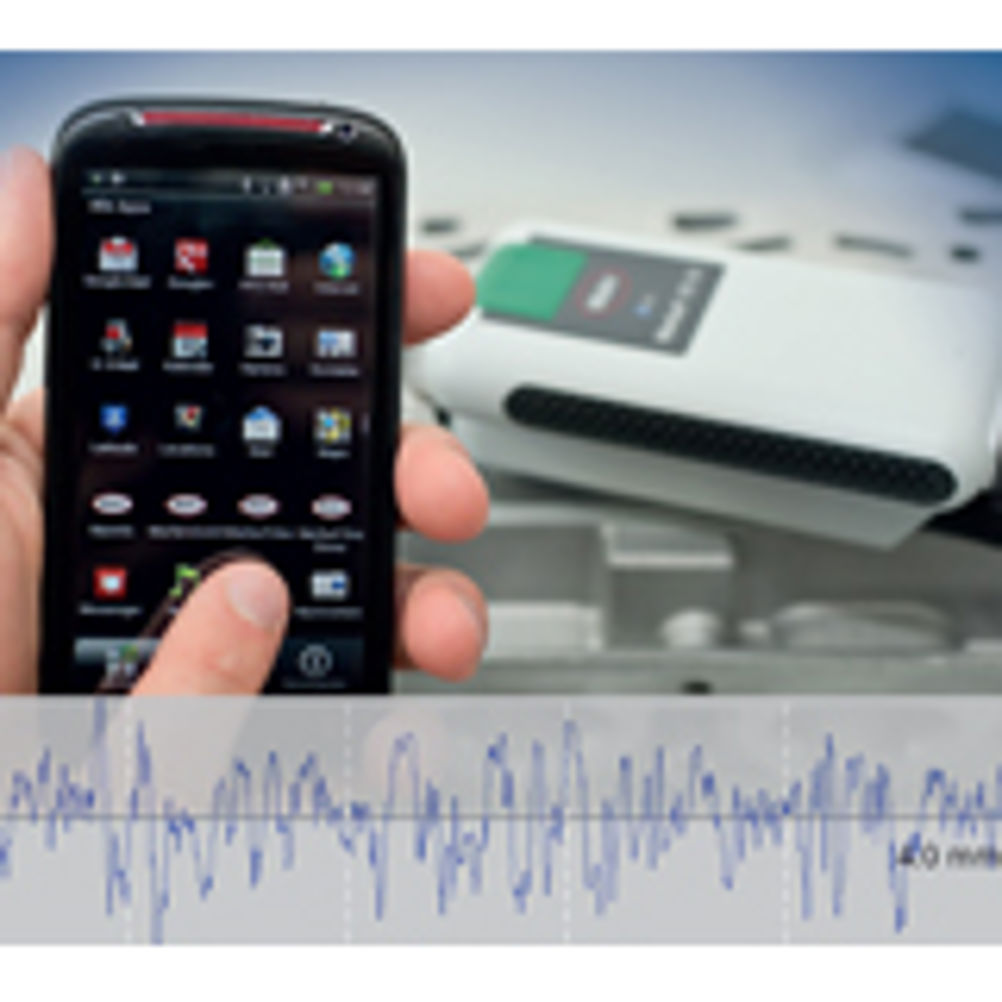

MarSurf One
With MarSurf One
•
measure the most popular roughness depth parameters Ra, Rz, Rmax, Rt, Rq
•
document the roughness depth profile
•
use the interactive zoom function with gesture control
•
save the results and measuring records as PDF on the SD card. They can then be sent by email, for example
• you are
up to date, because you are using the advantages of the Smartphone as well as the MarSurf technology. The means easy entry into surface metrology for every operator
• you can
measure immediately without training. Operation elements and philosophy correspond to the well-known Smartphone processes.
One Step Ahead with MarSurf One
With MarSurf One
•
travel without any 'load', because you have your Smartphone with you anyway!
•
only the small, manageable drive unit RD 18 with probe PHT 6-350 is required
•
only the MarSurf One app is needed, as long as you already have a MarSurf M 300
•
move comfortably between locations, even within one factory
•
use cable-free operation thanks to the Bluetooth technology
•
no training is required
• you are one of the
first!
The easy way to become a MarSurf One user
• Download the
'MarInfo app' at Google play® for Android TM*
• Download the demo version 'MarSurf One - Demo'
• Test the MarSurf One demo for free for 7 days
• Connect with the MarSurf drive unit RD 18 via Bluetooth and then measure
• Purchase via the
'buy button', activate and complete transaction with PayPal
• Full version MarSurf One is automatically downloaded and licensed.
* Android is a trade mark of Google Inc.
MarSurf One. Technical Data
Software MarSurf One
Measuring principle Tactile stylus method
Profile type R-profile
Filter type Profile filter
acc. to DIN EN ISO 16610-21
(digital, phase-correct)
Cutoff wavelength 0.25 mm; 0.8 mm; 2.5 mm
Drive unit RD 18 ( skid tracing )
Tracing path 1.75 mm; 5.6 mm; 17.5 mm
Special tracing path 0.75 mm
adjustable up to traverse length
Drive unit speed 0.5 mm/s
Parameters Ra, Rz, Rmax, Rt, Rq
for Android Version 2.3 and higher
MarSurf RD 18 Set
Measuring range 350 µm
Profile resolution 8 nm
Set "MarSurf RD 18" Order no. 6910416
consisting of:
• Drive unit MarSurf RD 18
• Skidded probe PHT 6-350 / 2µm
• Integrated standard
• Height adjustment
• Probe protection
• Probe protection with prismatic underside
• End face vee-block
• Mains adapter
• Connecting cable RD 18 for drive interface
• Operation manual
for Version 3.12-07 and higher
