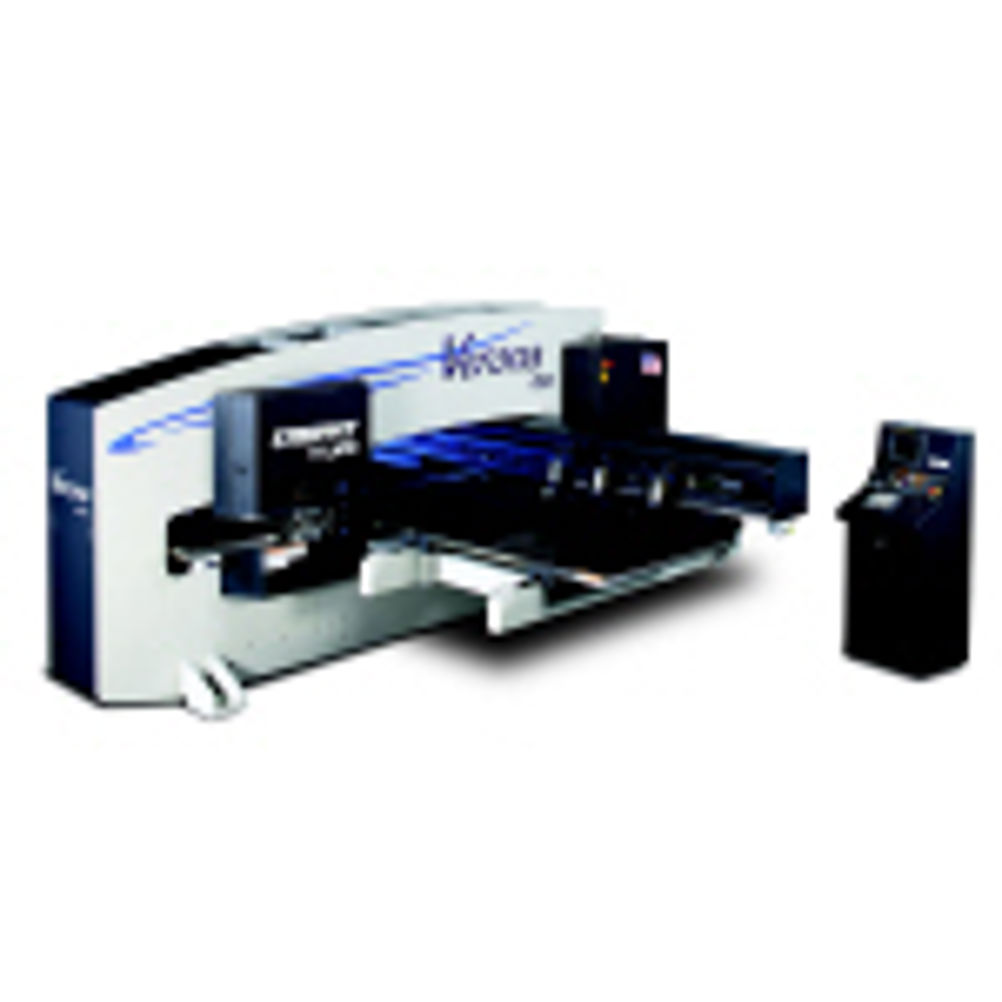

LVD Verona punch press is full featured

The Verona Series of CNC turret punch presses is offered in 20 and 30 metric ton models. Verona turret punch presses are robust, full-featured machines designed for high production demands. These Thick turret tooling style punch presses offer a large turret capacity with a versatile mix of stations and the largest feed clearance in the industry. Verona is equipped with a state-of-the-art, PC-based GE Fanuc 180i. Optional CADMAN programming software provides full support for all standard and advanced punching functions, including auto-Index stations, multi-tools, standard and special punches, forming, embossing, tapping, stamping and wheel-style tools. Verona punches materials up to 6.4 mm with a maximum hit rate of 1,000 HPM at 1 mm pitch. A state-of-the-art positioning system combines heavy sheet carrying capacity with accurate motion control to produce a finished part accuracy of 0.10 mm with a repeatability of 0.05 mm over the entire table. It handles workpieces up to 1524 by 2,500 mm, depending on model. Larger workpieces are handled with clamp repositioning, with Smart Clamp a standard feature, automatically determining exact clamp locations to provide the smallest possible no-punch zone. An advanced servo hydraulic press drive and easy-to-use interactive software optimize Verona’s high-speed operation while reducing noise and shock. Fully programmable stroke profiles and patented Smart Stroke feature maximise punching performance and provide flexibility for punching and forming applications. Smart Stroke automatically optimises the punch cycle by determining the hover height based on material thickness and distance between holes, maximising productivity without operator or programmer intervention. Verona’s large and versatile double-track turret provides flexibility and easy set- up. Every station accepts shaped punches and dies, reducing set-up time. Verona 20-ton models offer a 34-station configuration with four 88.9 mm auto-index stations. The 30-ton machines offer 48 stations with three 88.9 mm auto-index stations and one fixed 88.9 mm station or 114.30 mm station. The 114.30 mm station is ideal for producing large louvers, special forms or using full-size parting tools. Turret capacity can be increased with the addition of indexable Multi-Tools to expand the number of auto-indexable tools. Verona also provides enhanced forming capabilities with a full 25 mm feed clearance between the upper and lower turret. The punch press accommodates the latest in tooling technology for high-performance fabricating. These capabilities further reduce set-up time, enhance productivity and promote long life with minimal maintenance costs. Wheel tooling, including rollcut and rollform capabilities, permits quick and efficient cutting and/or forming of straight or curves shapes without nibbling. Verona machines also employ part marking technology for part number or sheet marking requirements and can utilise tapping tools. Material/part handling can be automated with the addition of an automatic sheet loading/unloading system and parts sorting device.
