Improved TaeguTec Top-Mini benefits turning operations on small workpieces
1 min read
An upgraded Top-Mini from TaeguTec offers improved clamping forces for operations on small workpieces on Swiss-type automatic turning centres. The design allows inserts to be effectively clamped from the side, which enables the operator to index the insert without removing the toolholder from the lathe. This is particularly valuable when sliding head turning centres are using additional tool stations and add-ons that limit space in the work envelope.
TaeguTec says its Top-Mini's excellent durability sustains repeated clamping. The structure also offers the end-user the option of front or side clamping versions to suit the relevant machine tool and set-up.
Backward and downward two-directional clamping action of the TaeguTec Top-Mini gives a rigid and stable clamping force for improved tool life and surface finishes. This new development also improves the insert clamping process and the repeatability of insert clamping.

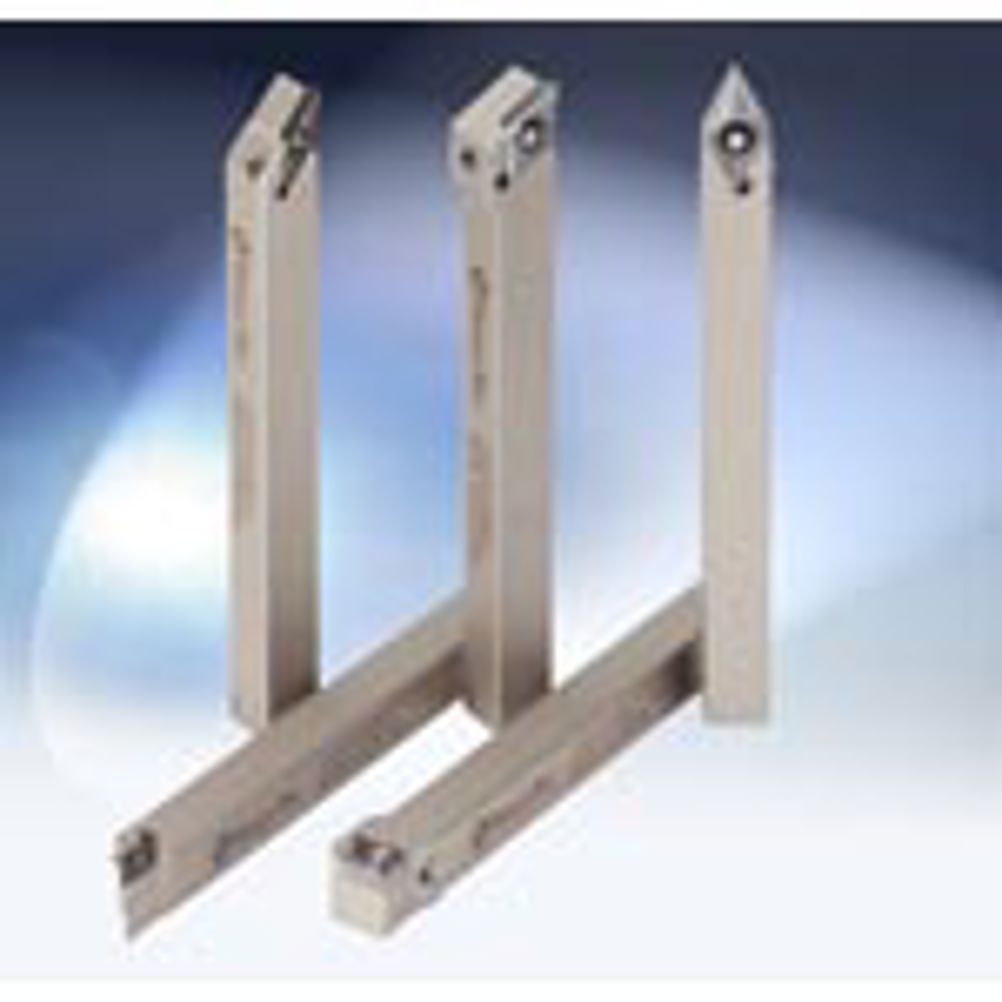

Top-Minis are available in four designations to accommodate four different insert types. The BCL Top-Mini has an 80° included angle for robust external turning and facing processes, while the BDJ Top-Mini holds 55° inserts for external turning and profiling. Alongside these options is the BDN holder for profiling, chamfering and back-turning while the BVJ toolholder houses 35° inserts for the intricate machining of difficult to reach corners and profiles.
All toolholders are 125 mm long with a 12 mm height and width. Additional options are available. The new TaeguTec Top-Mini is also available with an extensive range of inserts to suit a wide variety of turning parameters and material types.
