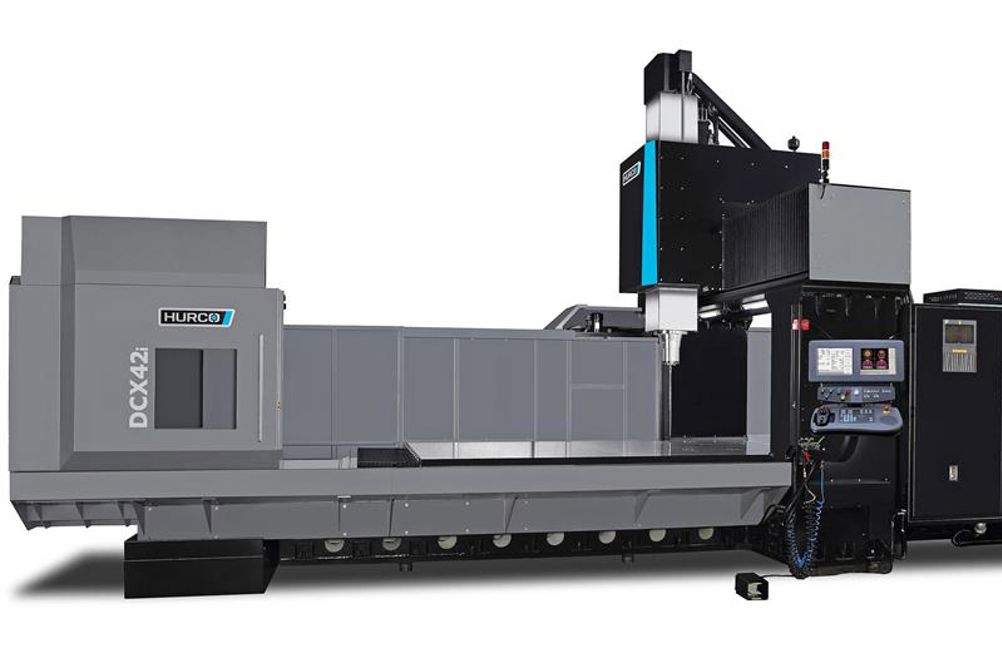

The 51 tonne machine offers X-axis travel of 4.2 m, plus 2.6 m in Y and 1.1 m in Z, providing a working volume nearly double that of the next model down, the DCX32i.
Hurco says that a major advantage of the design over a traditional C-frame is that a much larger Y-axis travel can be achieved without loss of rigidity. It also allows heavier table loads to be handled: up to 16 tonnes can be carried on the DCX 42i table.
The 60 kW spindle, mounted in a vertical ram of box construction, can be supplied with a maximum speed of 6,000 or 10,000 rpm. It is oil/air-cooled and can deliver up to 570 Nm of torque. The tool magazine has 40 stations for BT50 toolholders.
