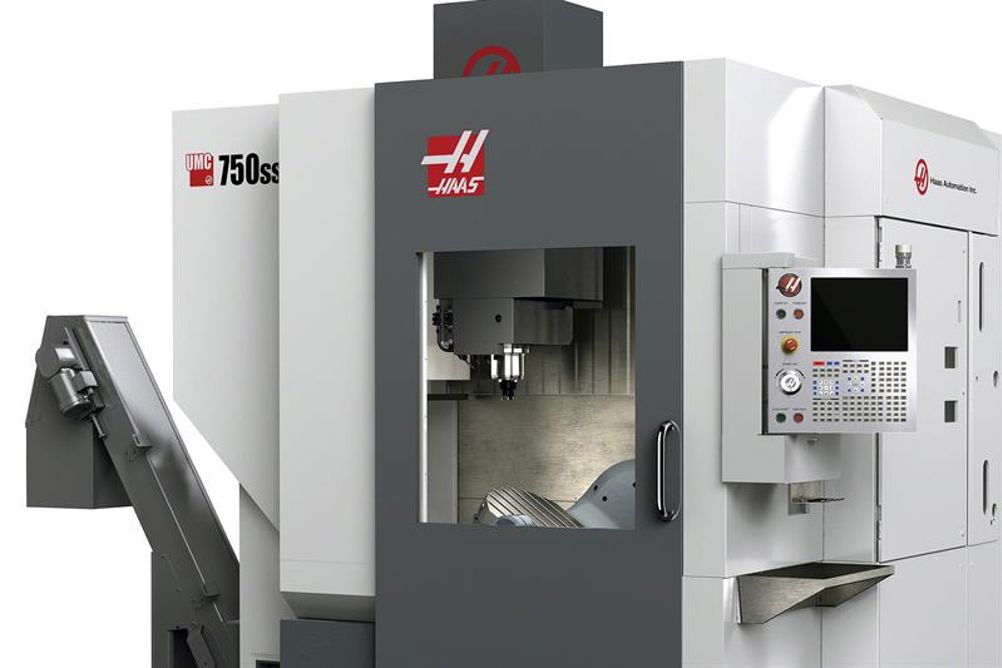

The UMC-750SS is a 5-axis, 40-taper universal machining centre with 762 by 508 by 508 mm travels, 30.5 m/min rapids and an integrated dual-axis trunnion table. The machine is equipped with a 15,000 rpm inline direct-drive spindle, a 40+1 tool side-mount toolchanger and Haas Automation's machining software.
The UMC-750SS's roller-cam trunnion table offers 150° per second rotation rates to position parts to nearly any angle for 5-sided (3+2) machining, or provide simultaneous 5-axis motion in support of contouring and complex machining. The trunnion provides +110°/-35° of tilt, and 360° of rotation for good tool clearance and large part capacity. The 630 by 500 mm table features standard T-slots and a precision pilot bore for fixturing versatility.
