Compact footprint multi-sensor large volume measuring machine

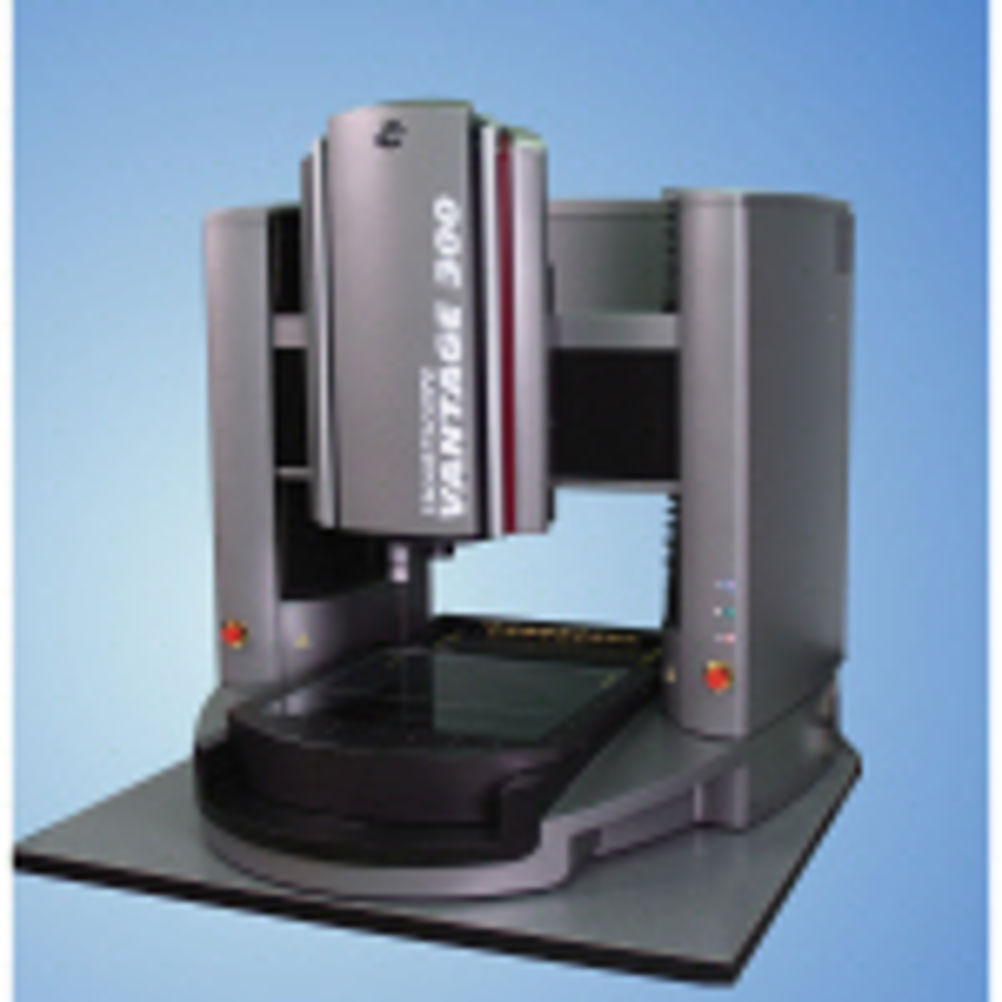

The Vantage 300, available from OGP, is the newest member of the SmartScope multi-sensor measuring machine series and is aimed at medical, aerospace and motorsport sectors where tolerances are particularly tight. One of its features is its compact footprint and surprisingly large measuring volume (300 by 300 by 250 mm). This, along with its visual and tactile precision, enables users to measure significantly larger components than would previously be possible with a machine of comparable dimensions. The Vantage 300 features the patented TeleStar telecentric auto calibrating zoom lens and, as with other members of the SmartScope series, a multiplicity of sensor technologies are deployed, making it possible to measure parts in a single operation that would normally require many set-ups using single sensor technology. These technologies include the SP25 probe that allows continuous scan-touching, a rare ability for a system of this size; and on-axis TTL (through-the-lens) laser measurement. The ability to use video and sensor measurement simultaneously both accelerates the inspection process and provides enhanced accuracy capability. The system also offers non-contact Rainbow white light sensor featuring nanometre capability. The machine’s innovative design features an elevated bridge that provides the necessary stability and rigidity to guarantee accurate, reliable and repeatable measurements, while OGP’s full 3D MeasureMind metrology software allows users to exploit fully the benefits on offer. MeasureMind data can be ported seamlessly to OGP’s suite of analysis packages such as MeasureFit 3D for surface to CAD analysis, or output in IGES format for reverse engineering to CAD.
