Intelligent Saphir QD software combined with the unsurpassed speed of the VideoCAD Rapid measurement station makes this instrument ideal for manufacturers of multiple and varied components such as stampings, pressed metal parts, gaskets, gears and cams.
Interacting directly with the components on the workstage and automatically taking dimensional measurements as soon as the user’s hand leaves the measurement area, Saphir software can measure several identical parts or several different parts instantaneously – no fixturing required. Components can be placed on the instrument stage in any orientation, even with the underside upwards. After initial setup, repeat measurements are carried out without even pre-loading a template: the software can recognise the shape and measure automatically, identifying a pass/fail instantaneously.
The software identifies all parts present and displays the measurements within seconds. Even when no measurement programme has previously been recorded, the software can recognise the contour, create a professional CAD drawing and make the alignment to perform the measurement operation. A DXF module allows measurements to be compared with associated drawings, including tolerance bands, Go/No Go identification and DXF data export.

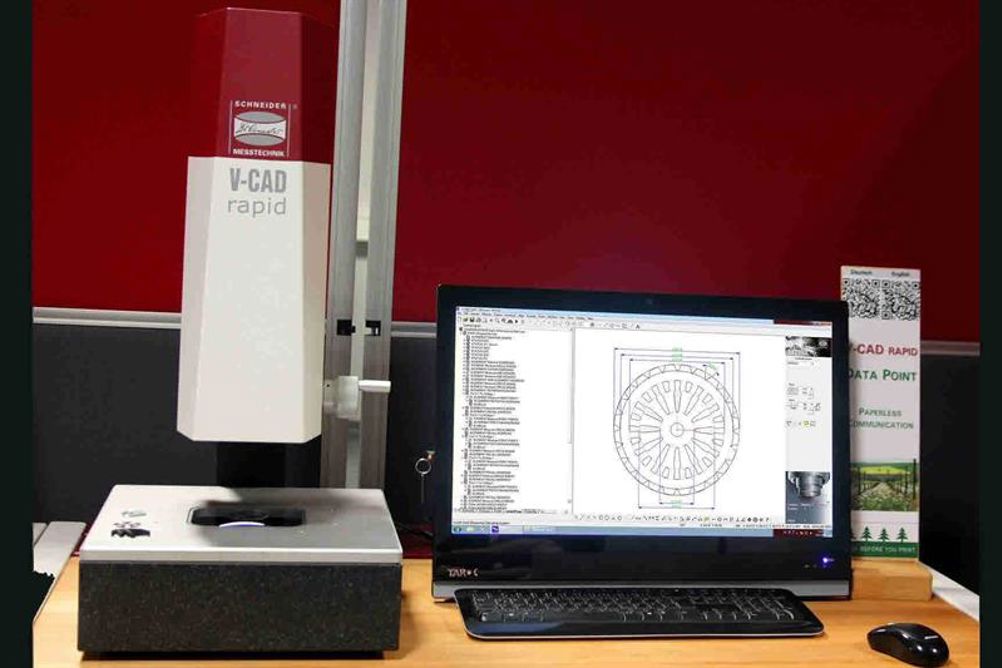

Saphir QD software is a great enhancement to an already powerful measurement system: the VideoCAD Rapid, designed by Germany-based optical specialists Schneider Messtechnik, incorporates a four-step motorised zoom lens to allow the system to adapt to a range of minute component features, and has four different fields of view.
A combination of transmitted and incident light ensures that all visible contours and features can be measured, even on parts composed of more than one type of material. It is especially suited to profiles made of plastic, aluminium, wood, rubber and metal, as well as stamped parts of any kind.
Available as a stand-alone measurement station or integrated into the production process, its design has no moving parts.
