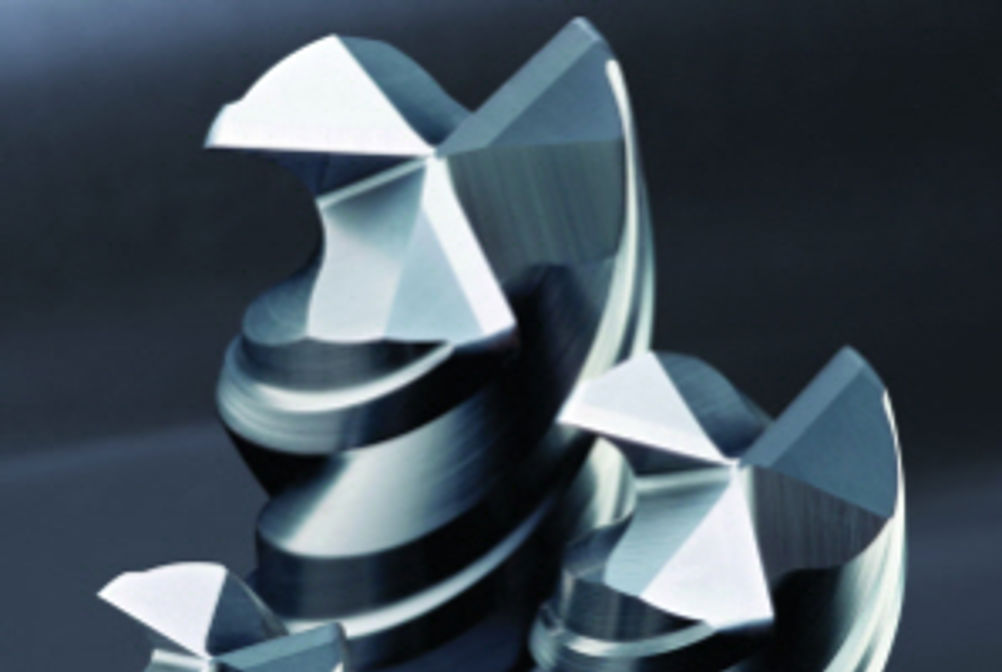

MACH 2014 - SGS Carbide Tool (UK)'s 3-flute Series 33 end-mills for challenging materials

SGS Carbide Tool (UK)'s managing director, Alan Pearce, outlines the three technical advantages offered by the new Series 33. "A stepped core design provides optimal chip control and rigidity when the flute is completely engaged. Second, a unique geometry has been engineered with variable helix and pitch configuration to provide chatter and vibration suppression. Finally, symmetrical end gashing offers superior balance, combined with a high level of strength and ramping capabilities." Available with a corner radius, the new Series 33 end-mills are ideal for aggressive ramping, pocketing and slotting of materials such as stainless steel, titanium and Inconel. The open structure at the tool end accommodates chip material ?ow and reduces the loading during machining operations on aerospace structural components, medical implants and devices, as well as high performance automotive and motorsport components. The new series was developed using the latest in engineering design and grinding capabilities, and is available exclusively with Ti-Namite-A, said to be the most abrasive-resistant SGS coating, offering superior wear properties, built-up edge resistance and increased tool life. "Leading UK companies involved in the motorsport, medical and aerospace industry sectors look to SGS for solutions. Not only are they machining difficult materials, but they also need performance levels that will keep them profitable, retain tight control on geometric form and provide an exceptional surface finish. Our cutting tool range has been developed to meet, and even exceed, these demands, and the benefits they offer are now available to general engineering companies looking for performance more from their cutting tools," concludes Mr Pearce.
