Radan 2013 CADCAM software enhancements support multi-tools and greater automation

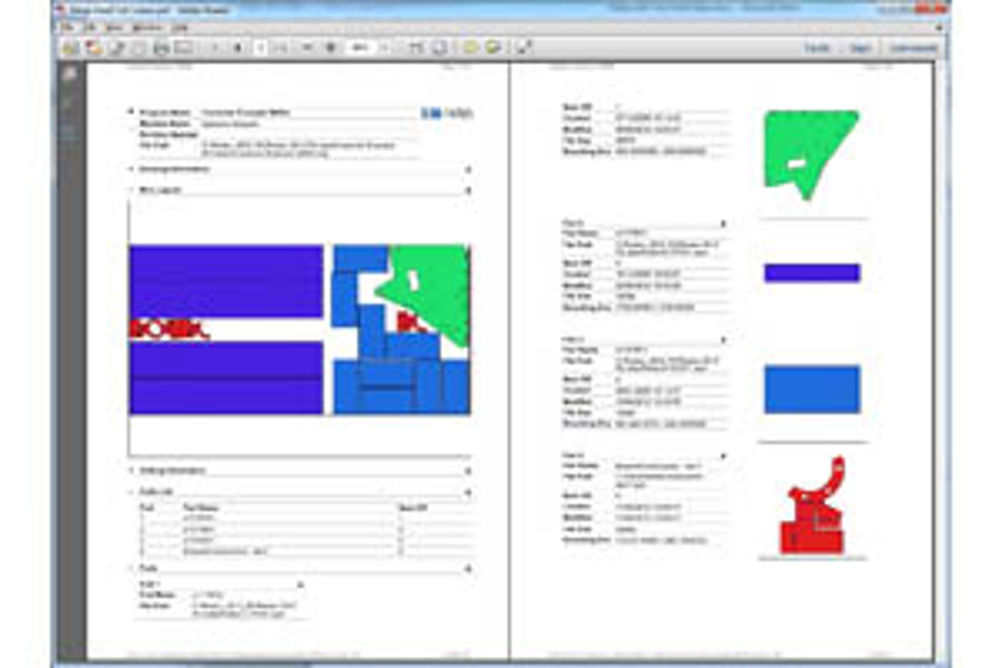

In Radan 2013, multi-tool configurations are deployed taking the 'variable (to buy)' for the machine tool into consideration. Radan General Manager Chris Aston explains: "For example, a configuration for a Trumpf machine will have the definitions – the shape and number of stations – of all multi-tools the customer may purchase for their machine tool, without allocating it to a tool station at that time. This requires less work and is more flexible than the traditional system of always allocating a multi-tool to a station." Automation enhancements include assigning colours to parts in nest projects. In total 32 different colours are distributed over the items in the parts list. The nesting colours are also used when generating the set-up sheet. Single Part Layout (SPL) has also been integrated with nest projects. A new setting is available in the SPL dialogue to specify whether or not to allow overproduction. Where multiple sheets are needed, SPL will generate a sheet count that will or will not satisfy the batch quantity. Where required parts do to fill a sheet, and overproduction is not allowed, the sheet will be left half empty. The SPL dialogue can now be used to edit a nest produced by the automatic nester with only a single part on it, to modify clearances, etc. This was not possible previously. Third-party file formats can now be imported by 'dropping' a file onto the 3D window. The resulting parts will be placed at the current workspace. The user confirms the material before the import is completed along with the thickness, if this is not to be calculated automatically. New Radbend CAD interfaces for Inventor and SolidWorks have been introduced, so that Radbend can be used as a bend simulation tool for engineering. Improved connection between Radan 3D and Radbend allows parametric programming of parts. After a change to the 3D model in Radan 3D, the Radbend program (tool selection and fingerstop positioning) is automatically updated. In Radan 2013, geometry can be selected using just a single click. This selection method can be used to copy geometry (jump to cursor) or for grabbing parts.
