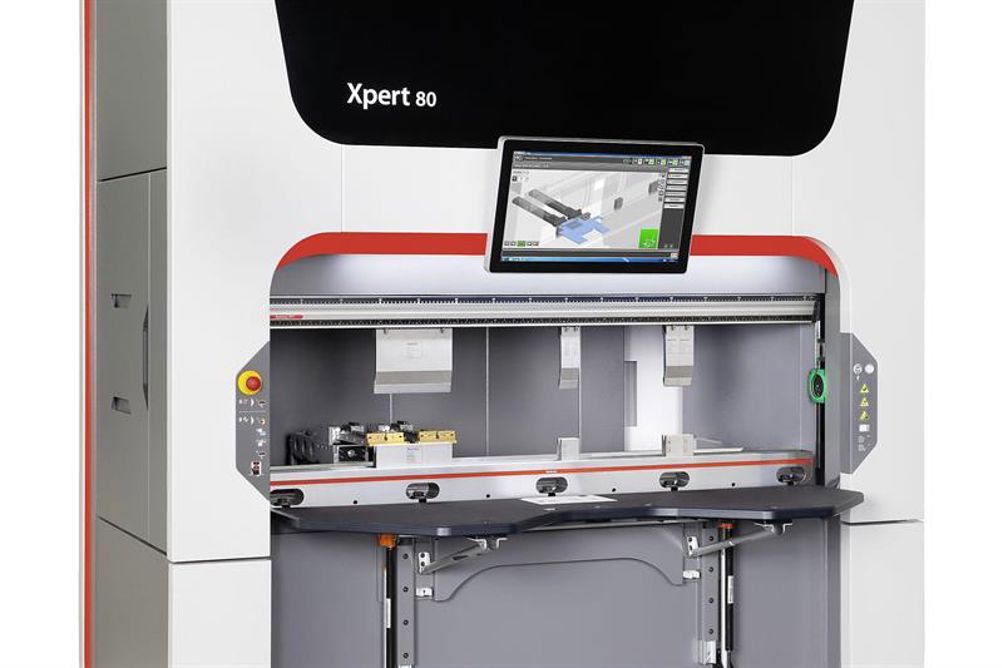

Called Xpert 80, it joins the smaller 40-tonne, one-metre Xpert 40 model, introduced at the 2014 EuroBlech, that can be similarly repositioned. Both machines boost productivity by avoiding having to use a large, slower pressbrake to bend a small component. Output can be increased further by relocating the machines next to a laser cutting cell, another pressbrake or other machine tool.
The new, larger press brake can bend material up to 20 mm thick and is suitable for almost any task, from large volume runs to small batch, job shop production of complex parts. The machine may be equipped with multiple tools to enable all bends to be completed sequentially. ByMotion drive control, a Bystronic development, ensures that the Xpert 80’s upper beam and backgauges are accelerated with high precision. Fast bending speeds up to 25 mm/s are attained.
Ergonomic design features include drawers built into the side of the machine for housing bending tools and other equipment within easy reach of the operator. A height-adjustable, folding table at the front of the machine can be used as a working surface or storage area. Power consumption is low, due to the machine’s energy-conserving design and the start-stop technology employed in the drive train.
Upper and lower tools self-seat during clamping as the operator presses an icon on the machine’s touch-screen control. Tool positions are automatically calculated as a part of the program and flashing LEDs on the front of the upper beam instruct the operator where the tools need to be mounted to correspond with the 3D movements of the high speed backgauge.
The ByVision touch-screen control, which is mounted directly in front of the operator, displays simple 3D graphics of the bending process. An optional bar code reader allows the program to be called from a bar code on a work sheet or from a QR code etched on the blank should the owner have a Bystronic laser cutting machine.
