Degreasing tank system is compact
1 min read

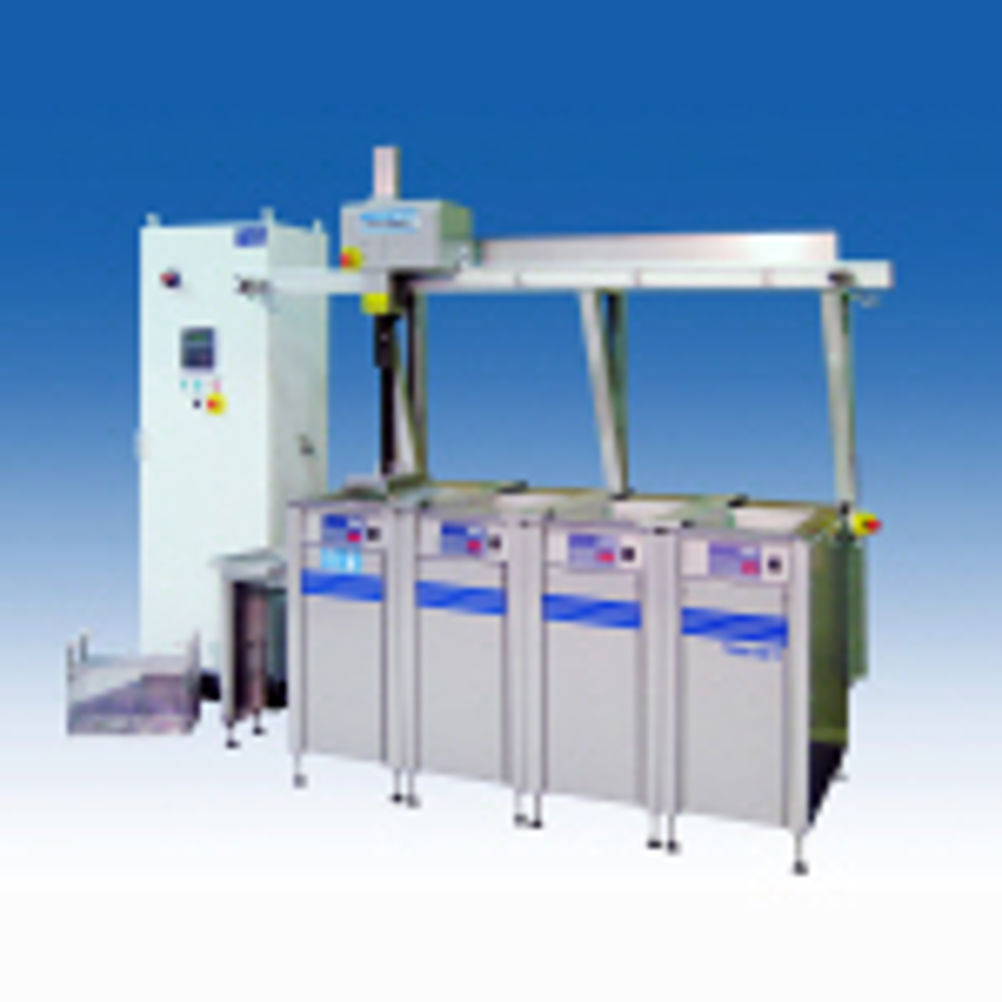

The Versa+ ultrasonic cleaning machine sees the tanks swivelled the tanks through 90° so that they are side by side. The installed equipment is therefore significantly shorter, saving space on the shop floor.
Typically, cleaning machines for washing and rinsing components in several stages often have their rectangular process tanks positioned end to end in a line.
The range is modular and expandable, able to have any number of tanks, which can be either 40 or 80 litres capacity.
Typical cleaning processes include ultrasonic or immersed jet cleaning, single or multiple water rinsing and hot air drying. Particle filtration as well as oil separation can be included, according to customer requirement.
Designed for small-scale washing and degreasing applications, the automated process is said to result in uniform cleaning of components. Manual configurations can also be specified.
The Versa+ is well suited to use in the electronics and semiconductor industries, PVD (physical vapour deposition) and other coating applications, and cleaning watch parts, lead frames and x-ray tubes.
Each tank is operated from a panel linked to a central PLC system, which provides ease of use and also allows retrofitting of handling automation, available for 10 kg or 20 kg basket weights. Manual handling by pneumatic assist lift is available for baskets weighing up to 30 kg.
